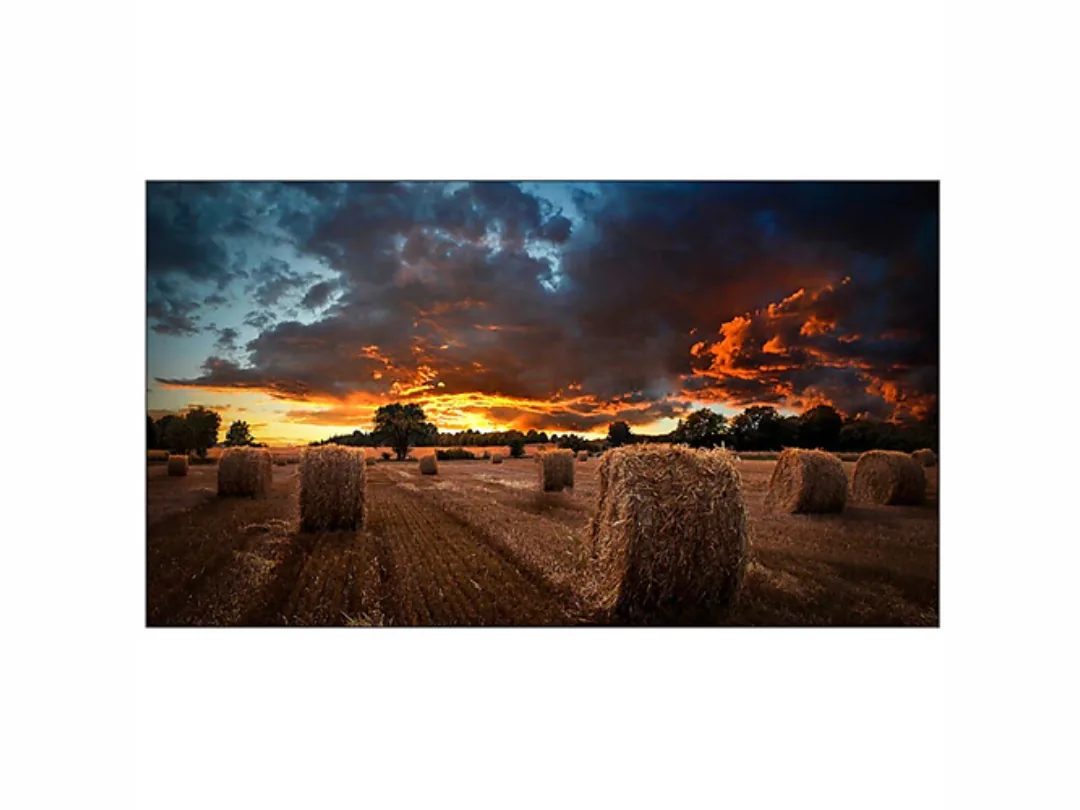

Samsung VM46B-U — 46" inch Ultra Narrow Bezel LCD Video Wall Signage Display | 500 Nits | 24/7 | FHD 1080p | LH46VMBUBGBXGO

Samsung VM46B-U 46" Ultra Narrow Bezel Video Wall Display – Seamless 24/7 Visual Solution

The Samsung VM46B-U 46-inch Ultra Narrow Bezel Video Wall Display is designed to deliver seamless, high-impact visual experiences for professional environments. Built for video wall configurations, this display features an ultra-narrow 3.5mm bezel-to-bezel design, enabling virtually gapless multi-screen setups that create a unified and immersive viewing experience.

With Full HD (1920 × 1080) resolution and 500 nits brightness, the VM46B-U ensures clear, vibrant content visibility across various lighting conditions. Its IPS panel technology provides wide 178° viewing angles, ensuring consistent colors and clarity from virtually any position.

Engineered for continuous 24/7 operation, this commercial-grade display is ideal for mission-critical environments such as control rooms, retail spaces, corporate lobbies, and transportation hubs. The non-glare panel evenly distributes light, reducing reflections and maintaining image accuracy even in bright surroundings.

The VM46B-U also supports daisy-chain connectivity via DisplayPort and HDMI, allowing multiple displays to be connected and controlled efficiently without the need for external video processors. Advanced calibration tools ensure uniform brightness and color consistency across the entire video wall for a professional-grade presentation.

Additionally, its IP5X dust-resistant design enhances durability, making it suitable for a wide range of installation environments without requiring additional protective enclosures.

Specifications

Specification Details

Screen Size 46"

Resolution 1920 × 1080 (Full HD)

Brightness 500 nits

Panel Type IPS LCD

Contrast Ratio 1200:1

Viewing Angle 178° (H/V)

Response Time ~8 ms

Refresh Rate 60 Hz

Bezel-to-Bezel Width 3.5 mm (Ultra Narrow)

Operation Time 24/7 Continuous

Orientation Landscape & Portrait

Connectivity 2× HDMI 2.0, DisplayPort 1.2, DVI-D, USB

Outputs DisplayPort Out, Audio Out

Network LAN (RJ45)

Control RS-232C (In/Out), IR

VESA Mount 600 × 400 mm

Panel Finish Non-Glare

Dust Resistance IP5X Rated

Depth ~69.9 mm

Speakers No (External audio required)

Usage Video Wall / Commercial Signage
